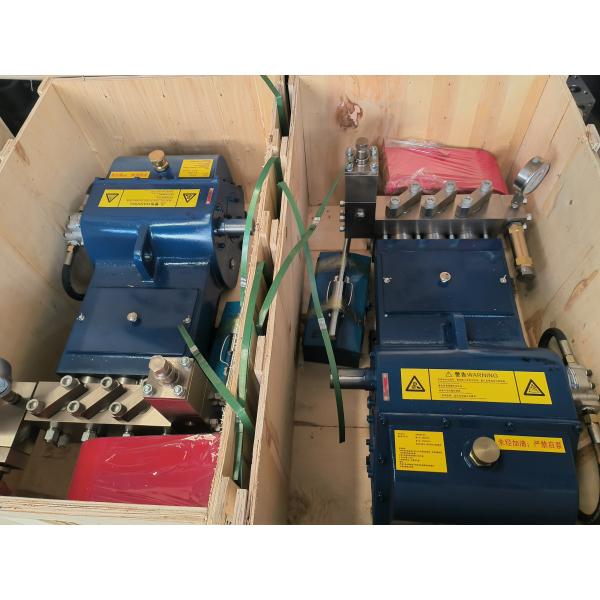

90-500bar Ultra High Pressure Water Jetting Pump Triplex Water Blaster Pumps
Product introduction of High pressure plunger pump:
The pump uses high-pressure pump equipment imported from Germany WOMA advanced technology; horizontal stainless steel pump head; stainless steel nickel alloy plunger, forced water cooling. High pressure pump box material ductile iron; good heat, hard texture, easy to deformation;
Main uses:
(1) Power industry: boiler furnace, turbine blades, condenser, air preheater; oil cooler, air cooler economizer, ash discharge pipe, etc.
(2) Chemical industry: cleaning of heat exchangers, oil storage tanks, distillation towers, reactors (towers, kettles), circulating cooling water systems, boilers, absorption towers, synthesis towers, towers, process pipelines, storage tanks, air compressors, pipelines and various pipelines and tube bundles in refineries.
(3) Petroleum industry: heat exchangers, oil pipelines, water injection pipelines, sewage pipelines, casings, conduits, cooling water systems, etc.
(4) Coal industry: air compressors, heat exchangers, hot water pipes, compressed air pipelines, etc.
(5) Metallurgical industry: iron (steel) furnace water system, air (nitrogen, oxygen) compressors, heat exchangers, various pipelines, primary coolers, air separation units, various furnaces, etc.
(6) Other industries: such as ships (rust removal, paint removal, oil and scale removal, scale removal, corrosion protection), oil pipelines, seawater desalination systems, oil tanks, flash evaporators, water storage tanks, air coolers, fresh water coolers, seawater coolers, etc.
Technical Data for high pressure pump
| Input speed | 1480 rpm | Stoke(mm) | 95 |
| RIO:i | 3.65 | Pump speed (r/min) | 405 |
| Power (kw) | 30 | 37 | 45 | 55 | 75 | 90 | Plunger dia. (mm) |
| Water flow | Rate pressure (Mpa) |
| m3/h | L/min |
| 2.40 | 40 | 37 | 46 | | | | | 22 |
| 3.00 | 50 | 30 | 36 | 45 | | | | 25 |
| 3.42 | 60 | 26 | 32 | 40 | 50 | | | 26 |
| 3.90 | 65 | 23 | 28 | 35 | 45 | | | 28 |
| 4.50 | 75 | 20 | 25 | 30 | 38 | 50 | | 30 |
| 5.10 | 85 | 17 | 22 | 26 | 34 | 45 | 50 | 32 |
| 6.12 | 105 | 15 | 18 | 22 | 28 | 36 | 43 | 35 |
| 8.10 | 135 | 11 | 14 | 17 | 21 | 28 | 33 | 40 |
| 10.2 | 170 | 9 | 11 | 14 | 17 | 24 | 28 | 45 |
